When customer use hardware wallets such as Ledger and connect to Electrum, the default situation is: a BTC payment address will only be used once. At the same time, when the wallet transfers BTC out, we cannot choose which "unspent utxo" to use - fixed Wallet address . This article provides an example of how to resolve this issue for reference.

Kind tips

Please note that the operation of this guide requires certain wallet technical knowledge. Please operate with caution and is not considered professional advice. HashKey Exchange makes no representations or warranties as to the accuracy or completeness of the contents of this Guide and assumes no liability for loss or damage caused by the omissions, insufficiencies or inaccuracies of the contents of this Guide.

Additional information

1) How to connect Ledger to Electrum, please refer to

Ledger official documentation:

https://support.ledger.com/hc/en-us/articles/115005161925-Set-up-and-use-Electrum?docs=true

Other reference

https://coinguides.org/sign-message-ledger-nano-sx/

2) If the device cannot connect, please refer to

https://coinguides.org/ledger-nano-not-detected-electrum-fix/

Steps

This article uses macos version electrum (v4.4.6) as an example

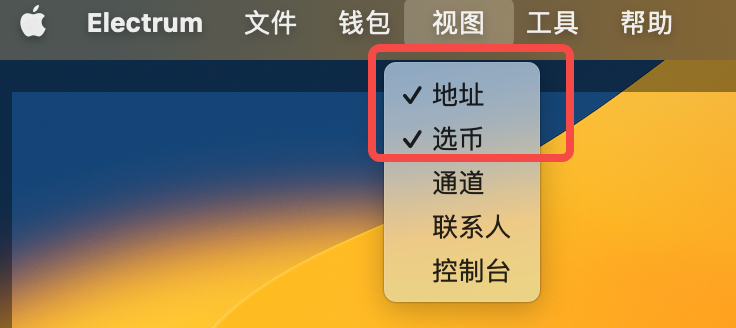

1. Open the "Address", "Select coin" view

2. Enter the "Select Coin" tab

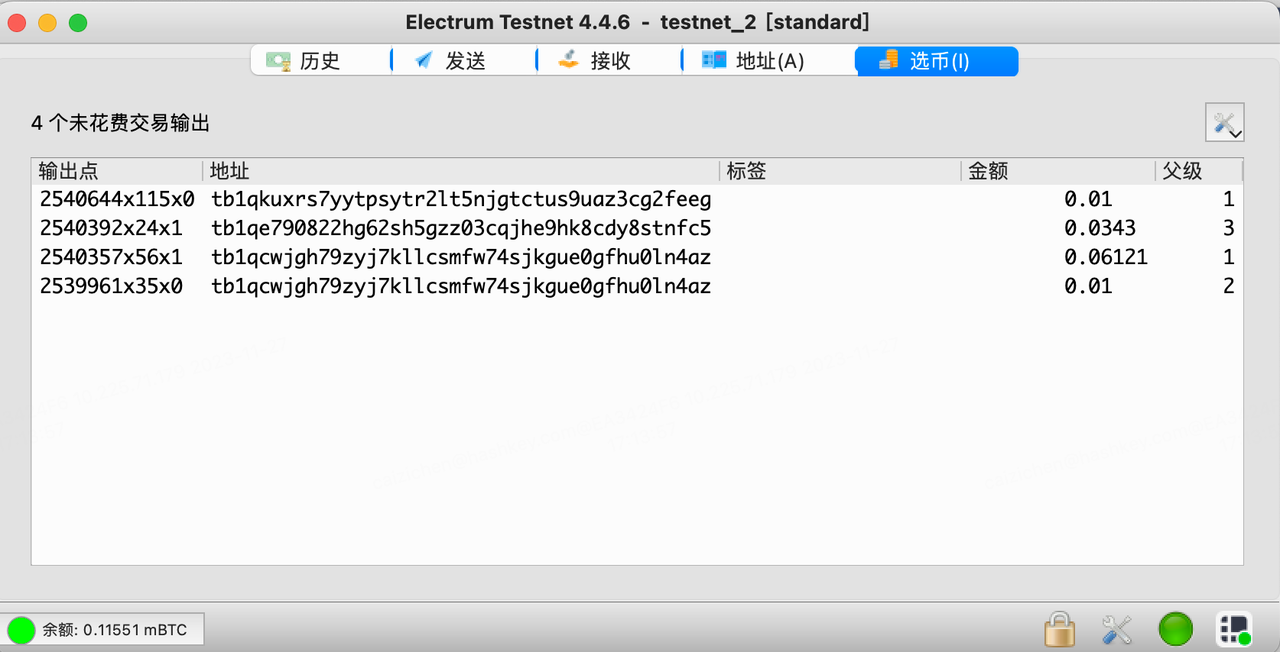

Here you can see that all unspent utxo related to this wallet are displayed on the interface

3. Select all utxo that can be used for this send

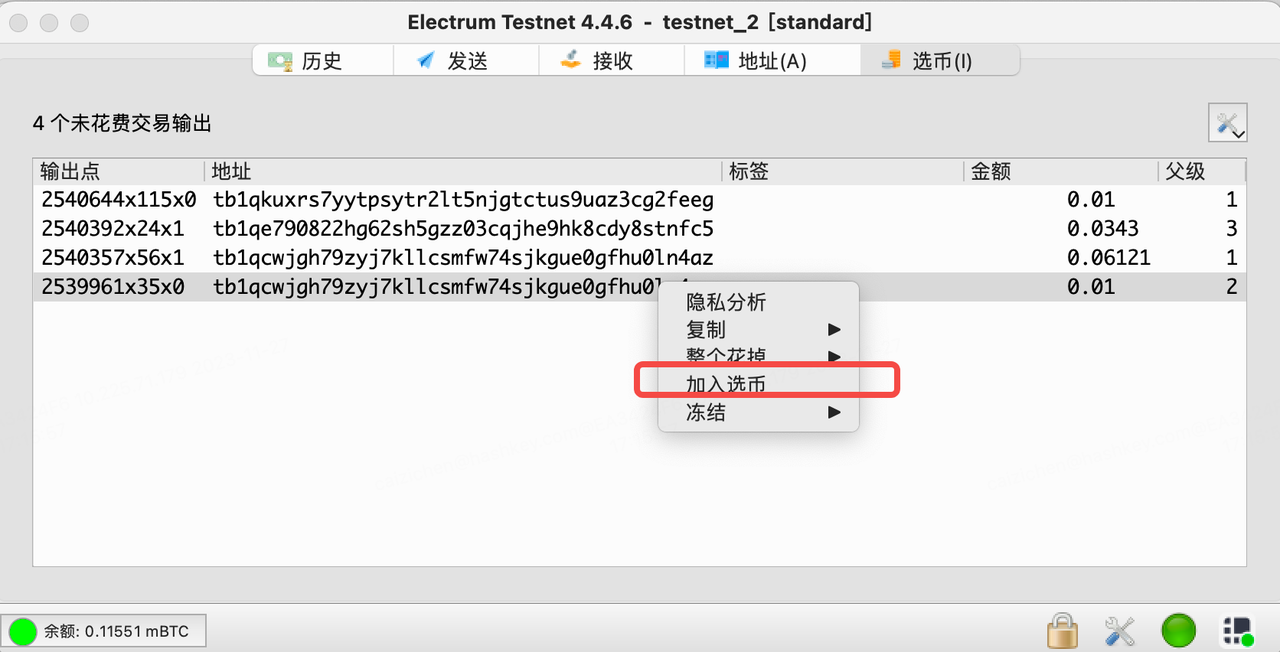

Right-click the corresponding utxo and select "Add Coin Selection"

You can also right-click after multiple selections and select "Add Coin Selection"

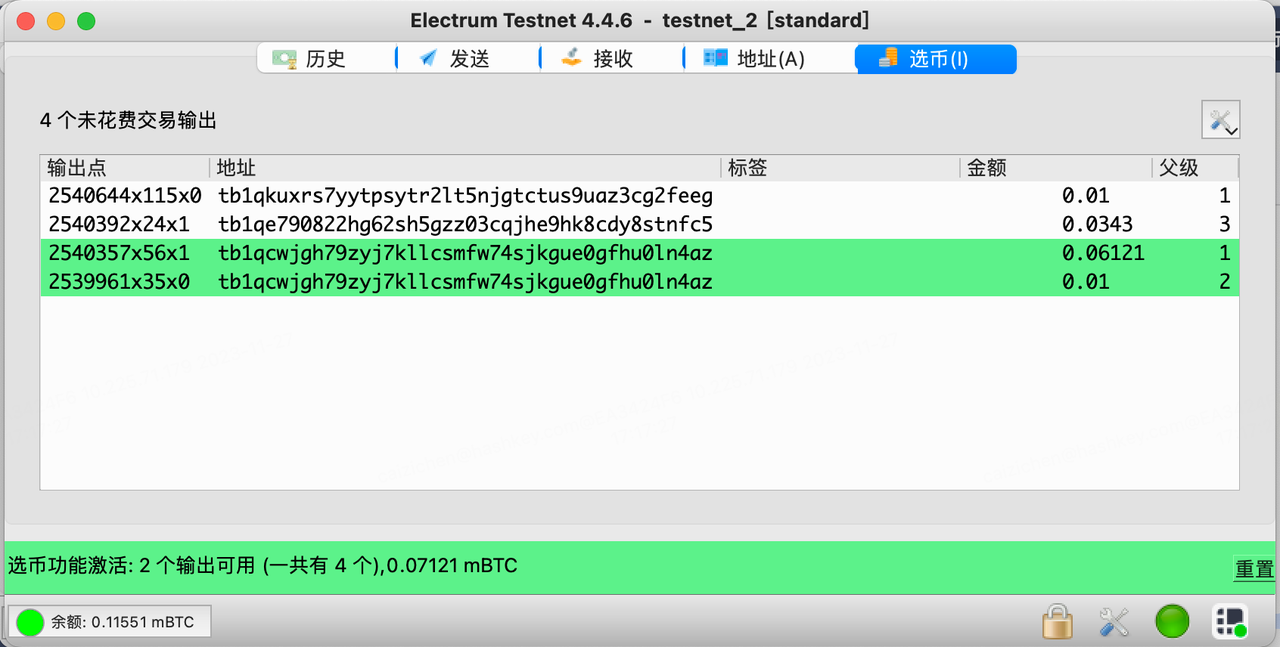

This article selects the last two utxo, which both belong to the same address. After selection, the interface is displayed as follows

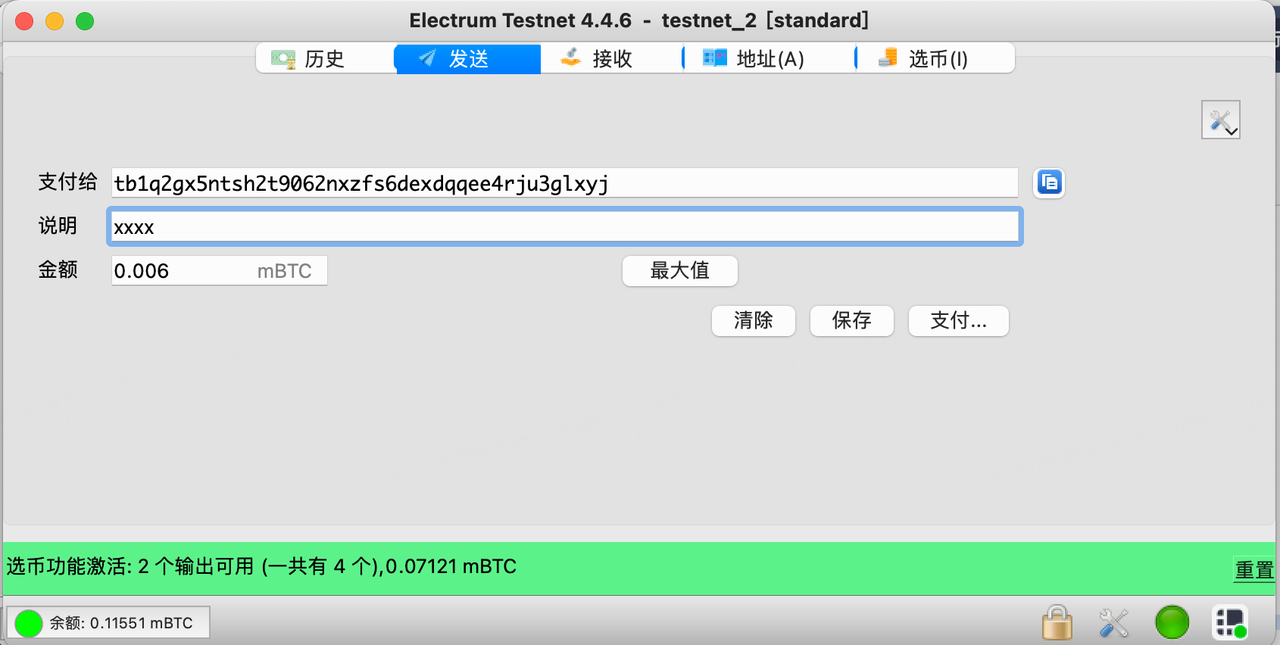

4. Enter the "Send" Tab

After filling in the amount to be sent to the destination address, select "Pay"

Send settings

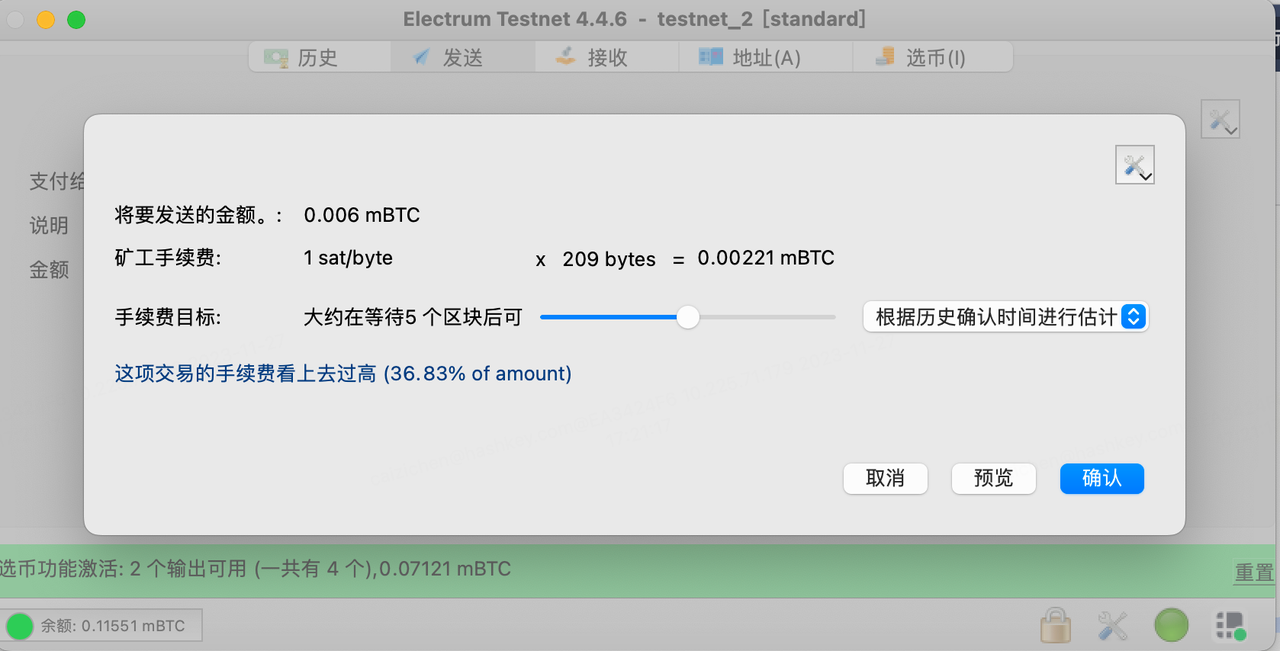

1. After entering the sending preview page, the default is as follows

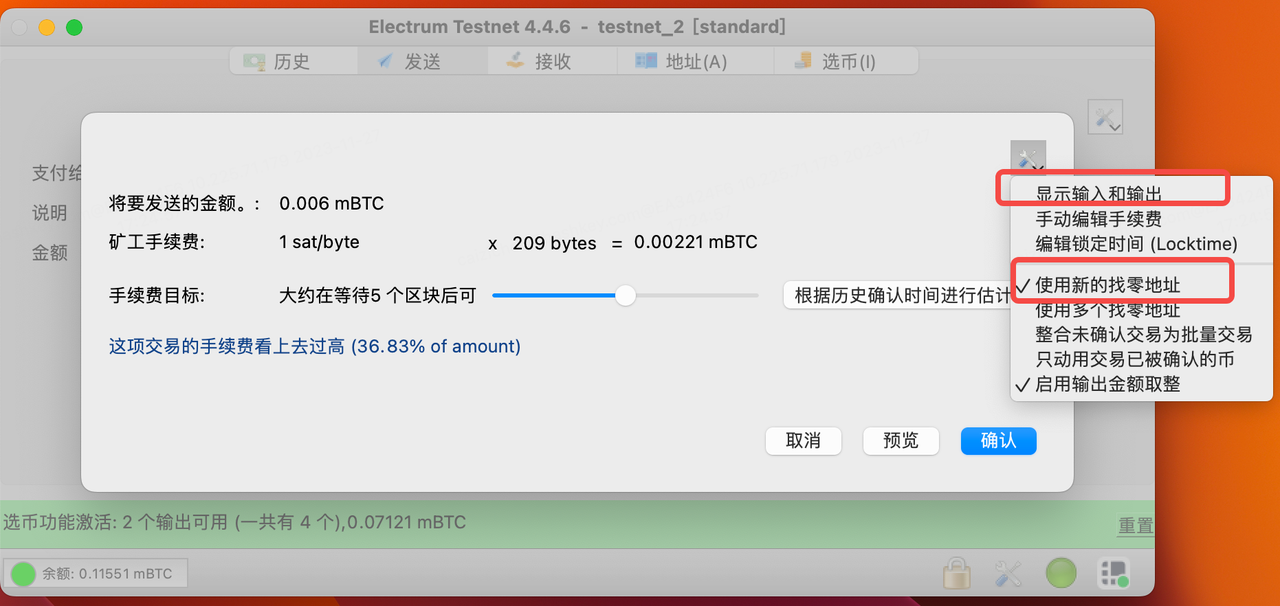

Click the button in the upper right corner to modify the configuration. Turn on "Show input and output" and turn off "Use new change address"

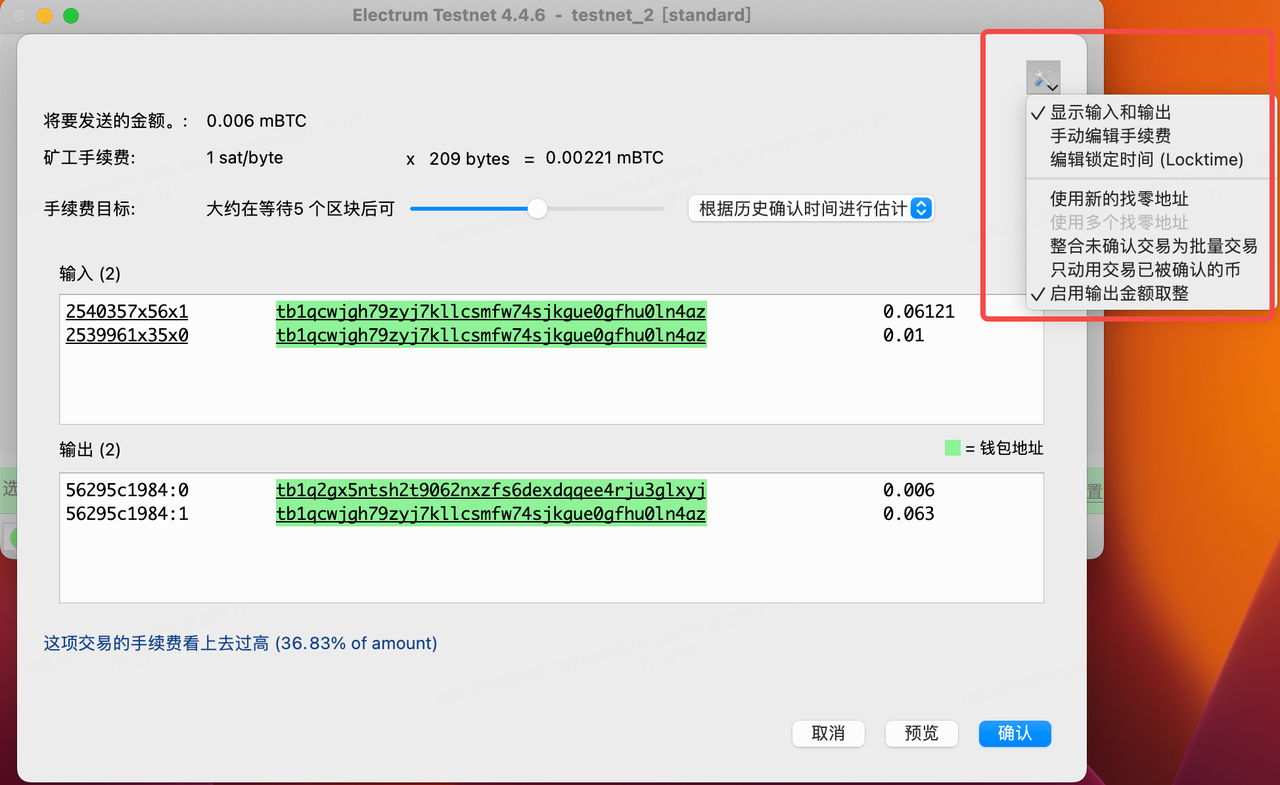

Make sure to modify the configuration as shown below

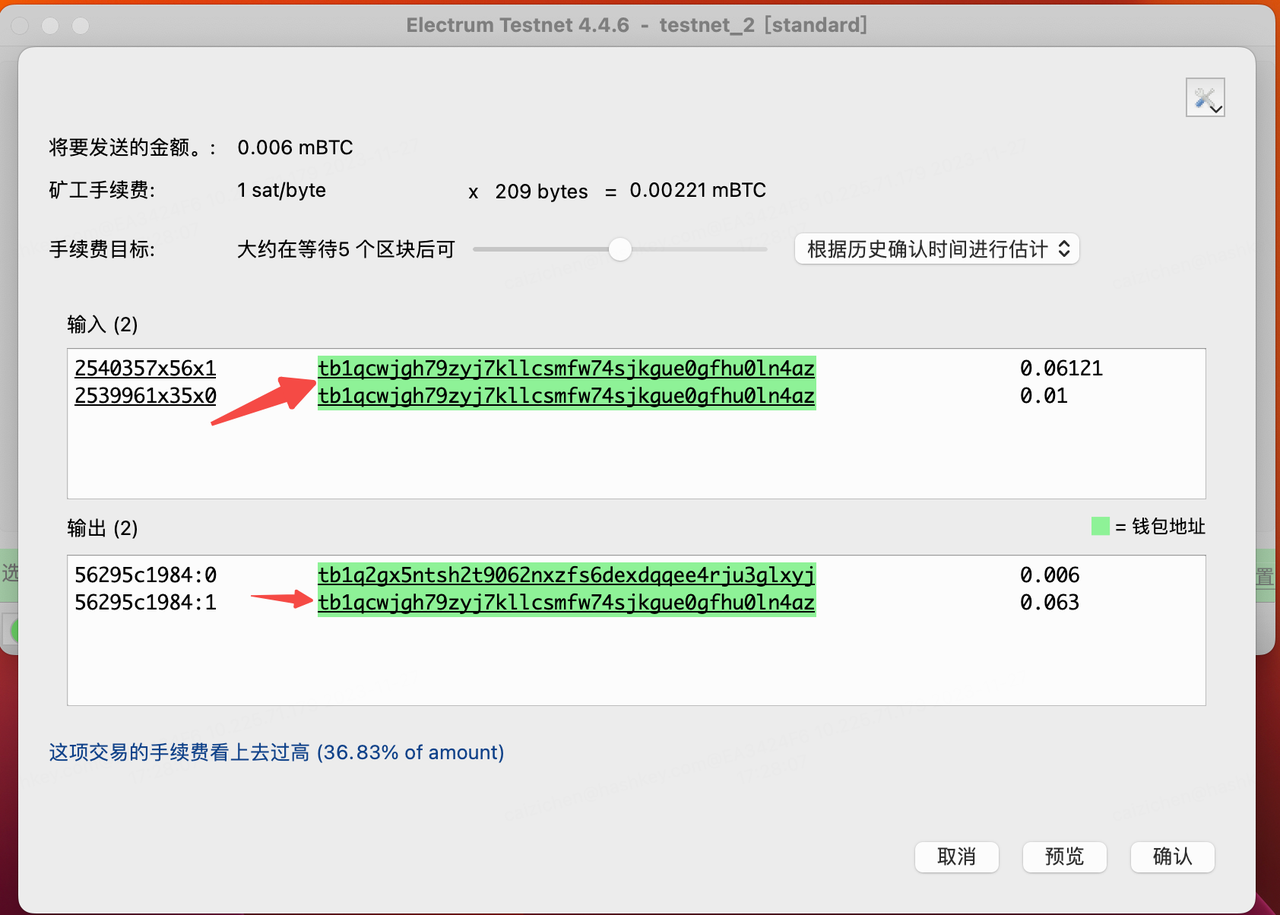

1. At this step, we can find that the utxo used to send the transaction is the target utxo we manually selected, and at the same time, the change ouput is also sent back to our original address.
